LAMINATED GLASS

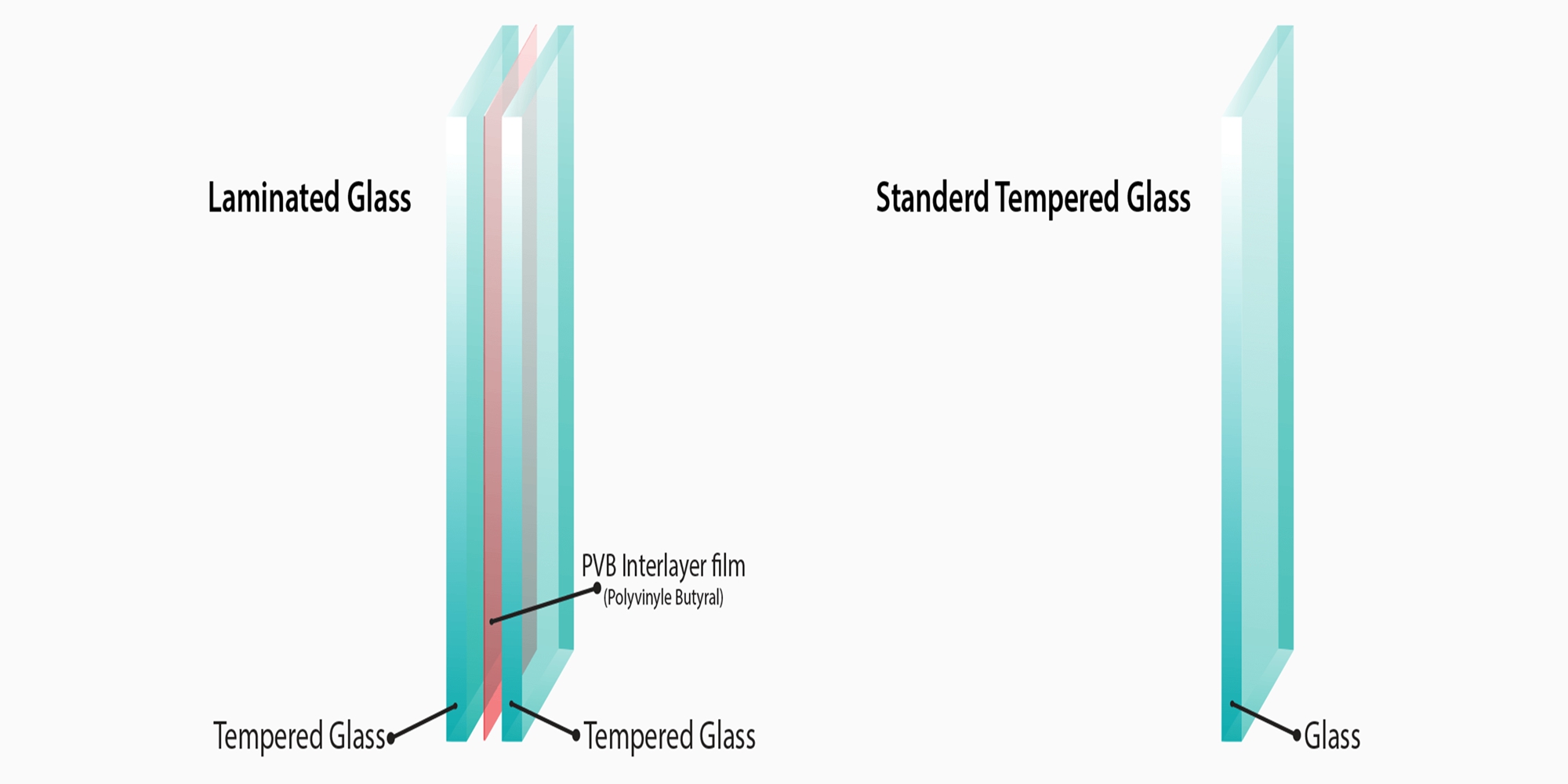

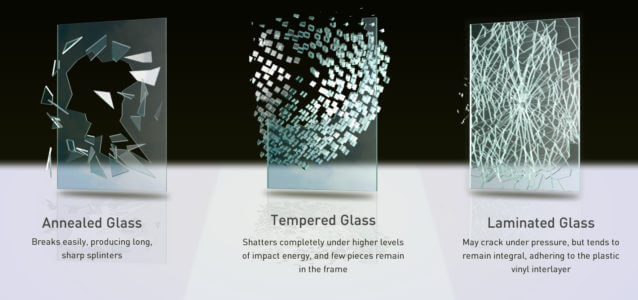

Laminated glass is made from two or three pieces of glass with a thin PVB film between each glass, processed with high temperature and high pressure. It can be made from high grade float glass, plated glass, tempered glass and curved glass. It would not crash into fragments when broken, since they are feltby the film. It would reduce the harm to people by the glass piece when the glass was broken, since it's not easily penetrated. With the sharp increasing of safety glass in all aspects of life, laminated glass has become a key component in the realization of modern interior decoration and exterior architecture due to its strength and safety features such as hurricane and impact resistance, protection against bombs or other explosions.



PRODUCTS PARAMETERS:





TEMPERED LAMINATED GLASS:

Thickness of glass	3+3	4+4	5+5	6+6	8+8	10+10	12+12	15+15	19+19
Thickness of PVB	0.38mm	0.38mm	0.38mm	0.38mm	0.76mm	1.14mm	1.14mm	1.52mm	1.52mm
Max Area	10㎡	10㎡	10㎡	10㎡	10㎡	10㎡	10㎡	10㎡	10㎡



LAMINATED ANNEALED GLASS:

Thickness of glass	4+4	4+4	5+5	6+6	8+8	8+8	10+10	12+12	15+15	19+19
Thickness of PVB	0.76mm	1.14mm	0.76mm	1.14mm	0.76mm	1.14mm	1.14mm	1.52mm	1.52mm	2.28mm
Max Area	2㎡	3㎡	3㎡	5㎡	3㎡	5㎡	4㎡	6㎡	According to actual situation



GLASS PICTURES:

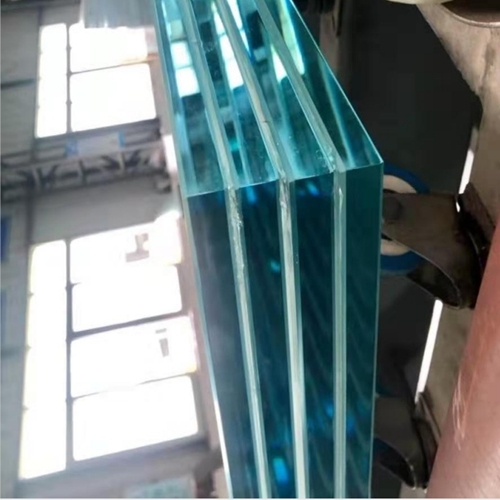

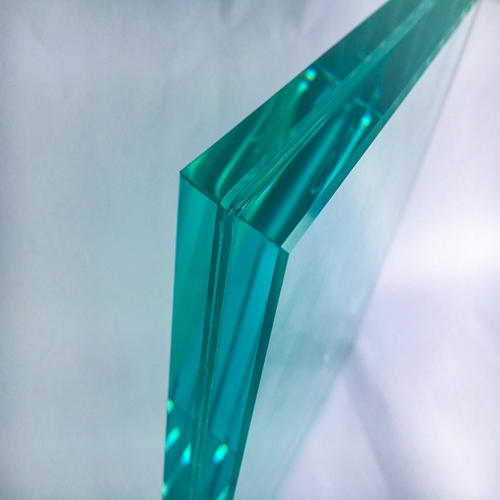

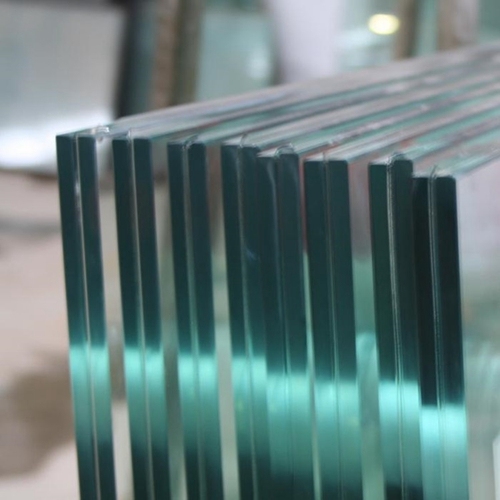

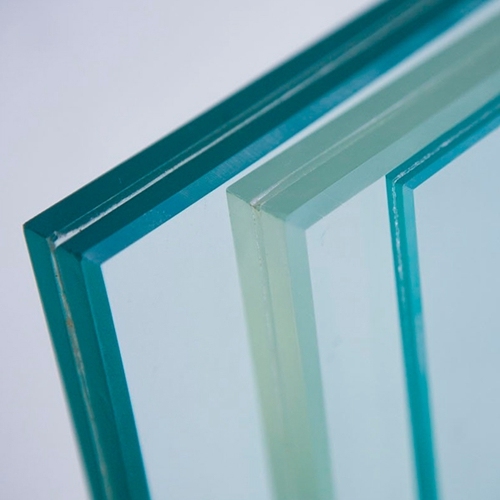

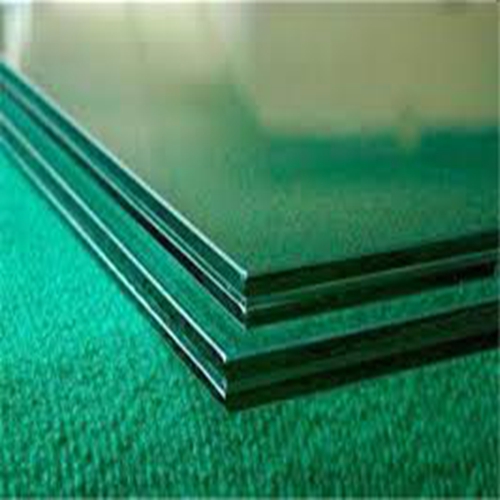

CLEAR/EXTRA CLEAR LAMINATED GLASS:

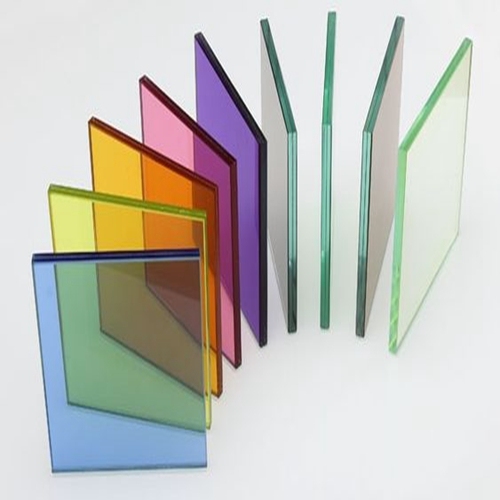

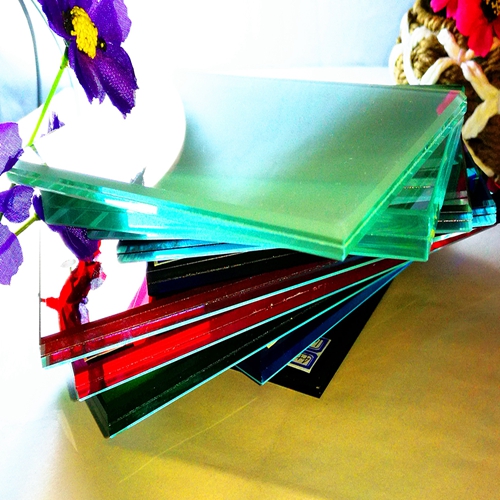

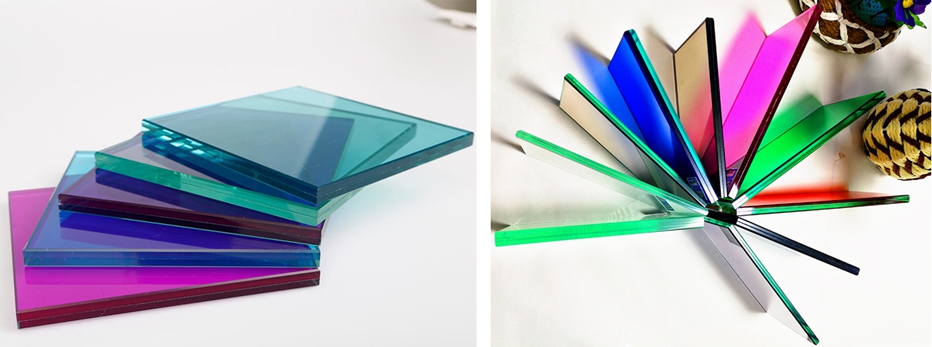

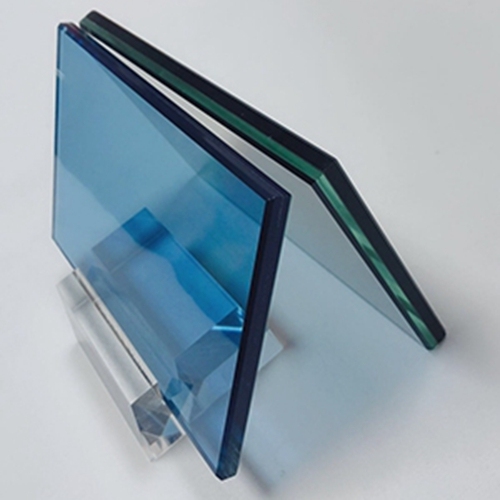

COLORED LAMINATED GLASS(USE TINTED OR REFLECTIVE GLASS OR COLOR PVB):

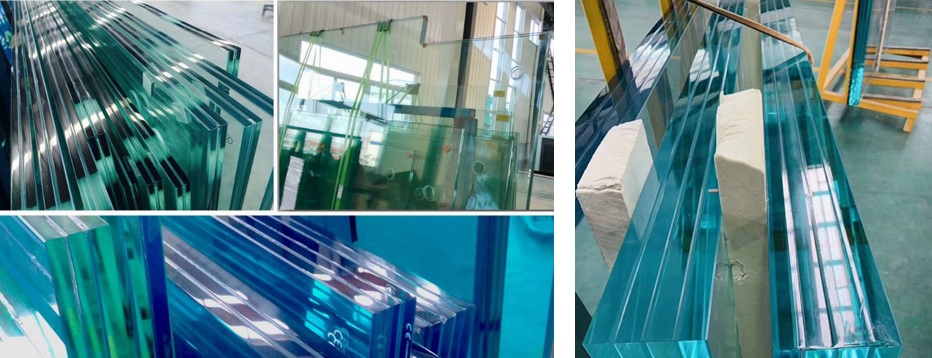

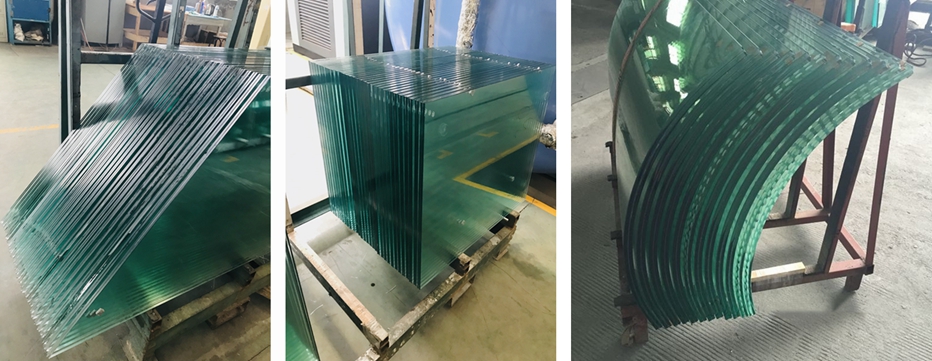

LAMINATED GLASS WITH VARIED SHAPES:

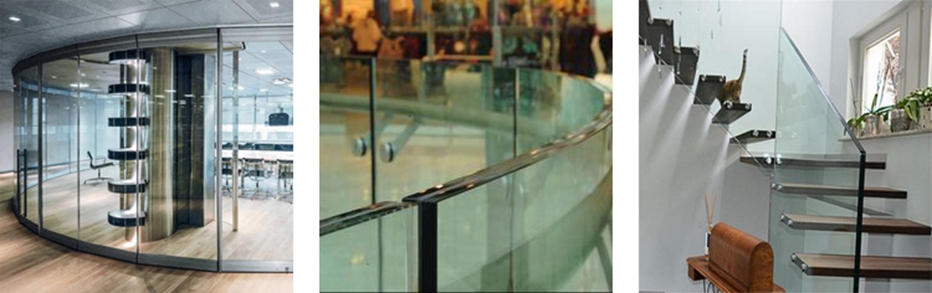

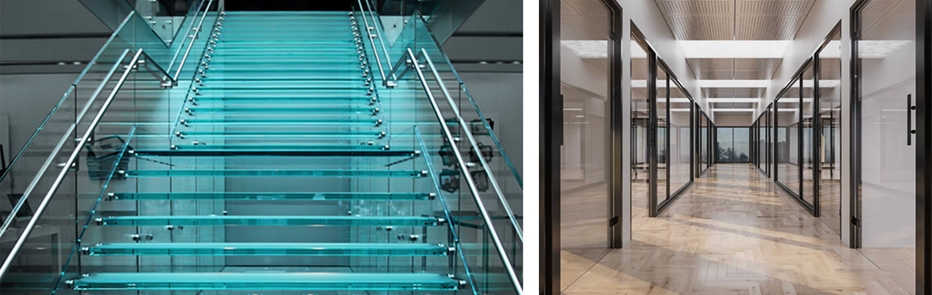

Laminated glass is used when there is a possibility of human impact or where the glass could fall if shattered, and for architectural applications.

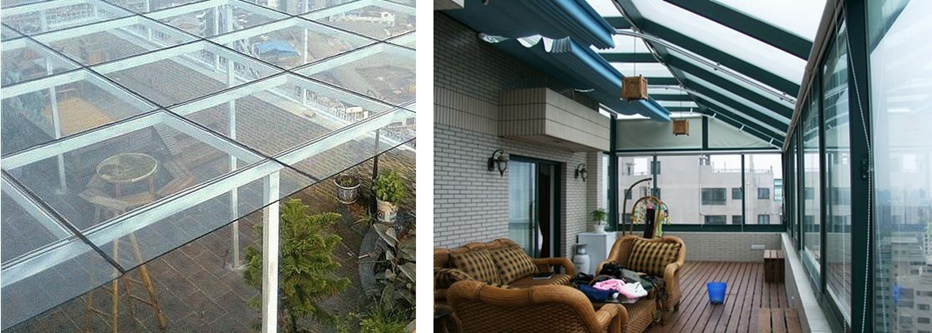

Skylight glazing and automobile windshields typically use laminated glass. In geographical areas requiring hurricane-resistant construction,

laminated glass is often used in exterior storefronts, curtain walls, and windows.

• Windows and doors

• Financial system

• Curtain walls and facades

• Skylights, canopy

• Handrails, balustrade

• Balcony fencing

• Swimming pool fencing

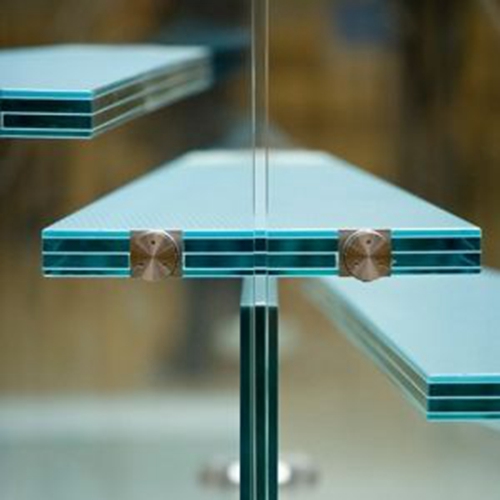

• Stairs, floorings

• Partitions, screens

• Art galleries

• Jewelry shops

• Post offices

• Cash counter of stores

• Government buildings

• Supermarket

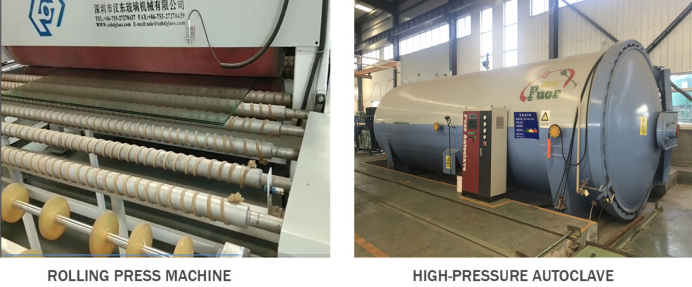

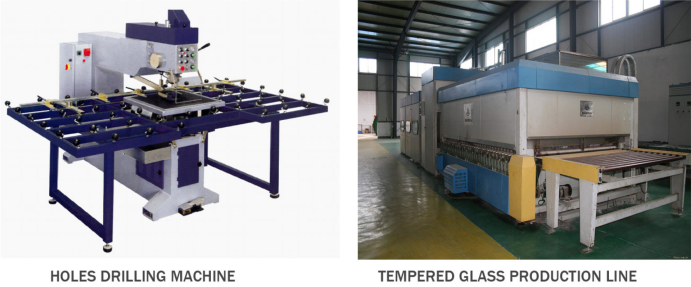

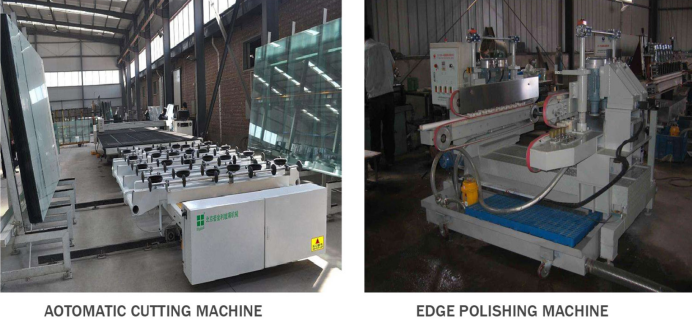

WORK SHOP:
