SWITCHABLE SMART GLASS

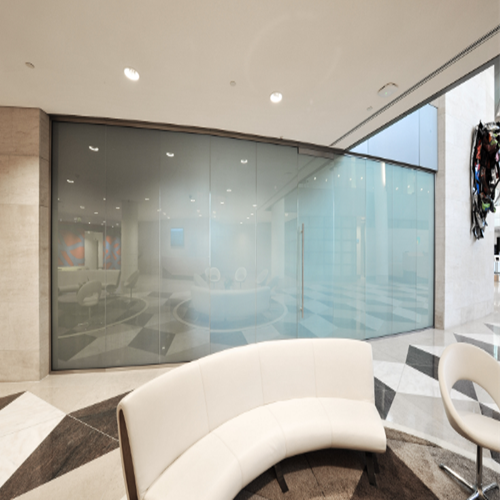

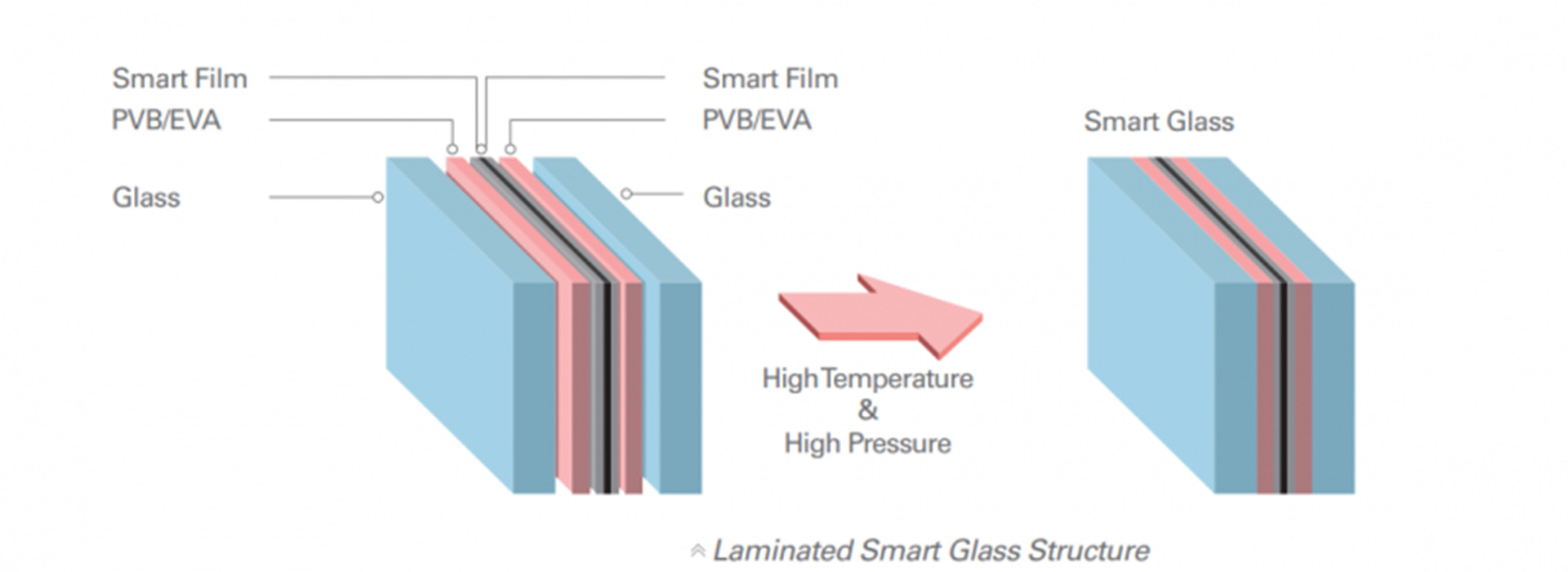

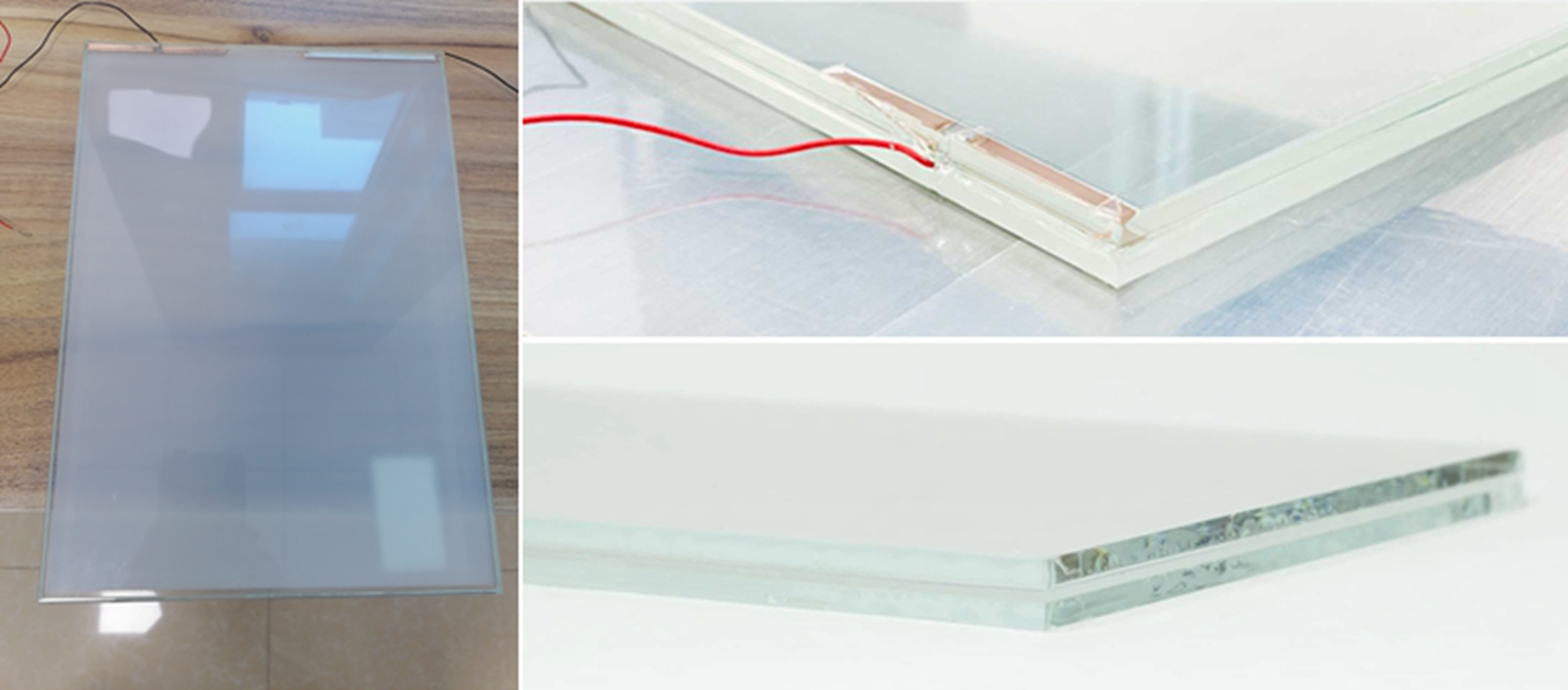

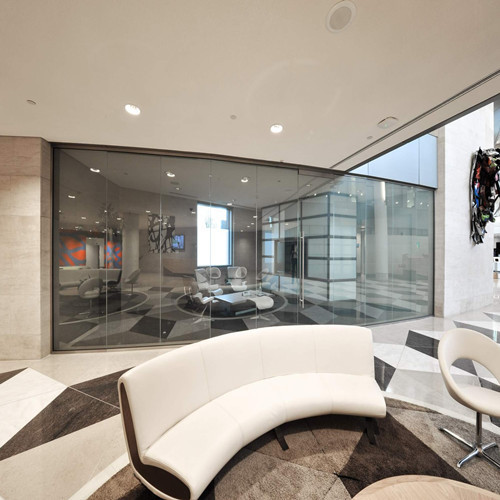

Smart Glass also called Switchable Glass,Privacy Glass,PDLC Glass,Intelligent Glass,The switchable smart glass is a kind of laminated glass product consisting of a PDLC(Polymer Dispersed Liquid Crystal) smart film sandwiched between two layers of glass. The PDLC film allows you to change the glass from opaque to transparent with the application of a low voltage electrical current, just like a light is turned on and off. It is the end product after lamination with pdlc smart film which already made with wiring, so easy to install like a regular glass, you can directly install to where you wanted.

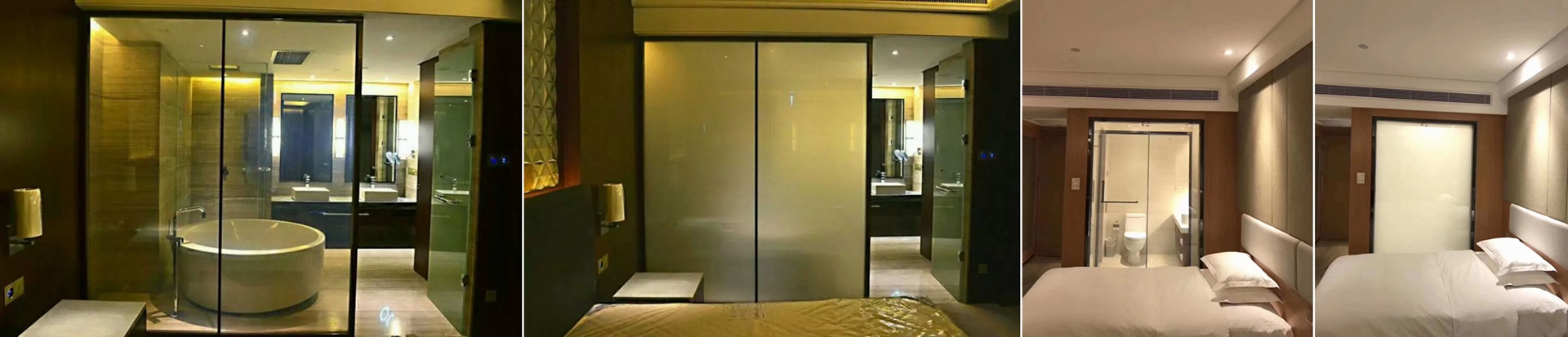

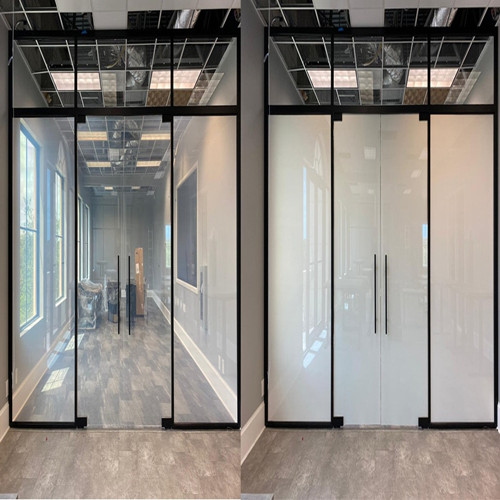

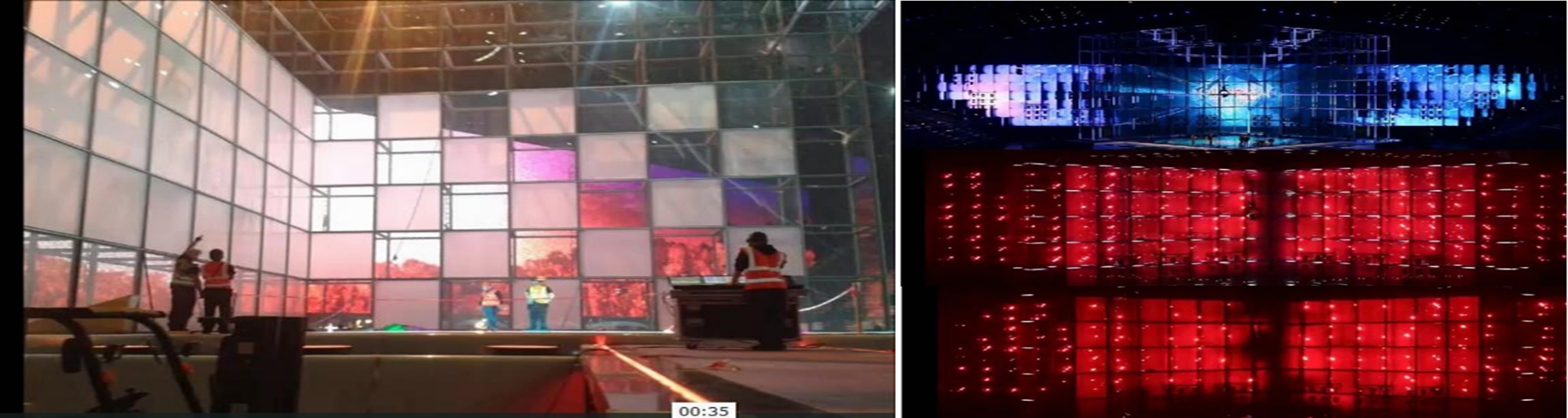

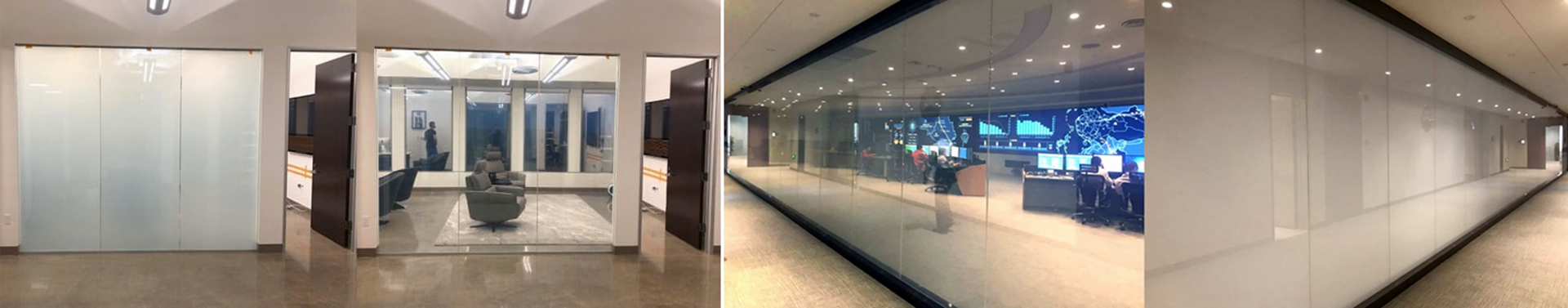

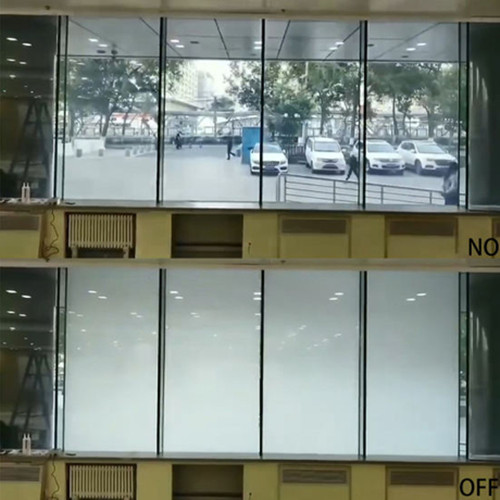

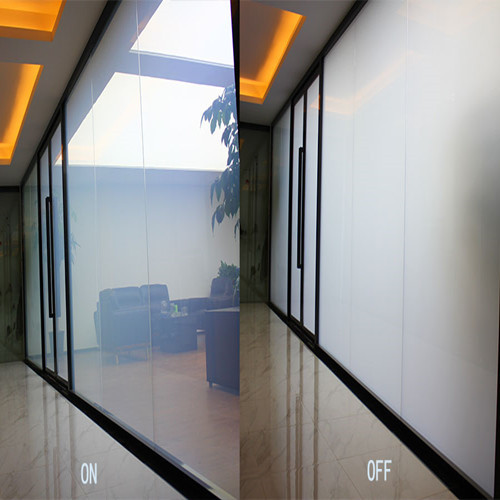

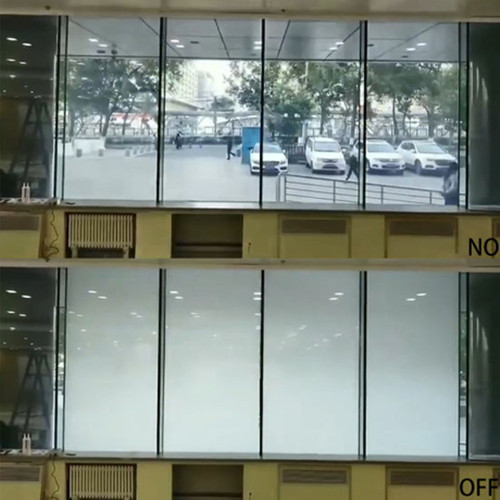

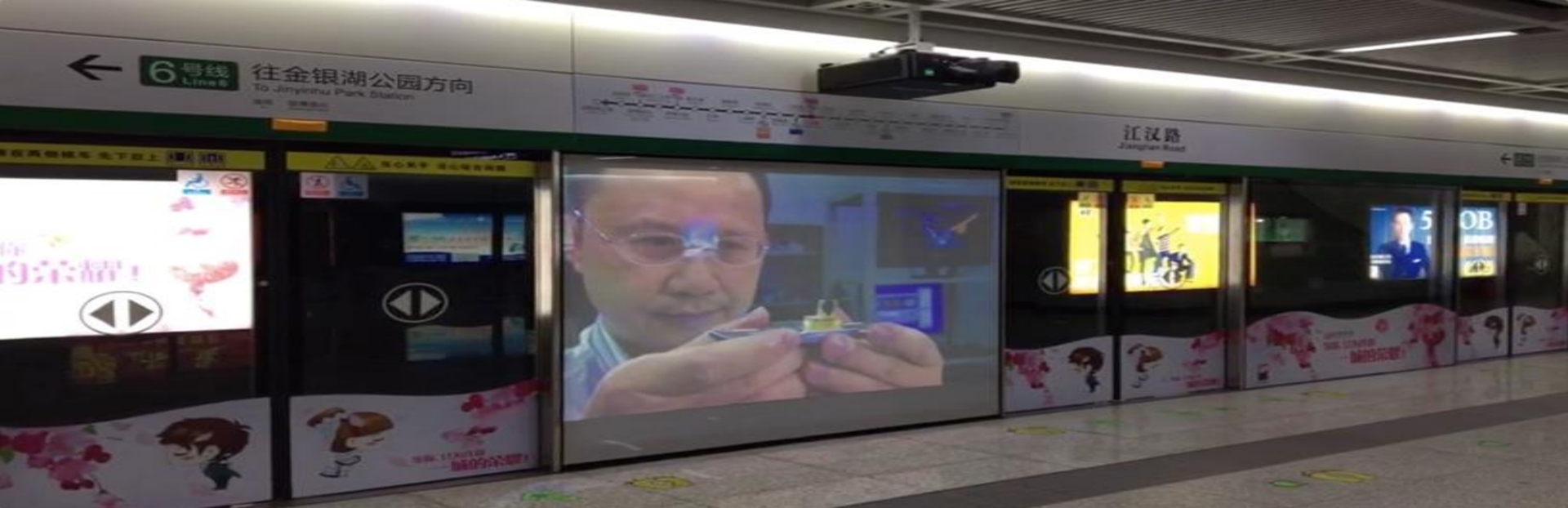

The user controls the transparency and opacity of the glass by controlling the on and off of the electrical current. In addition to the characteristics of safety glass, the switchable glass also can protect privacy, as a projection screen, etc.

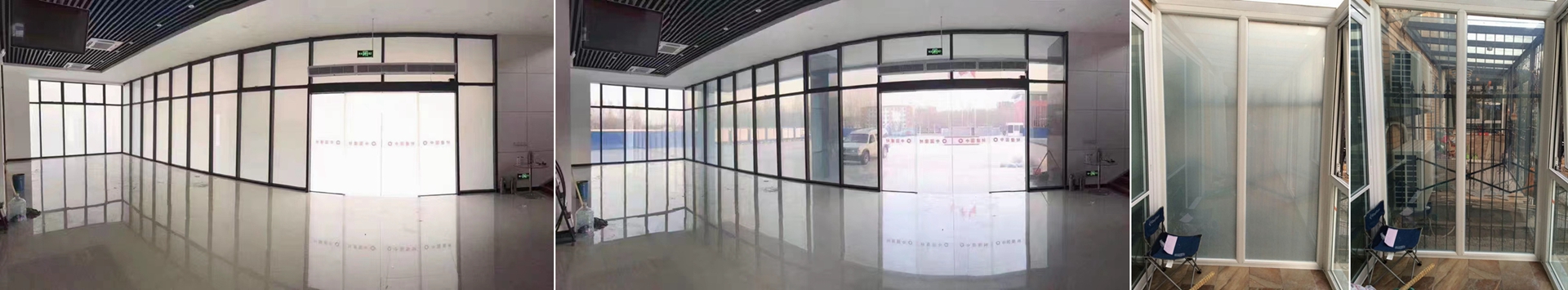

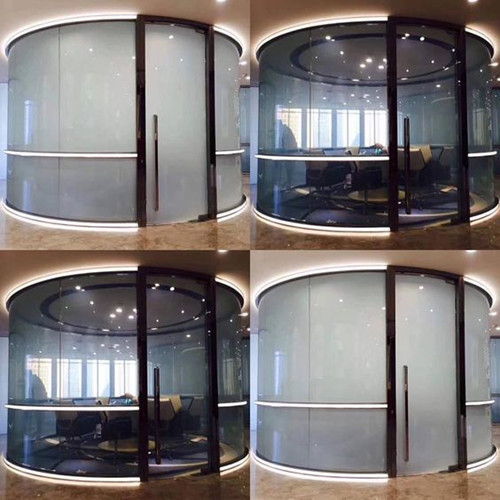

PRODUCTS:

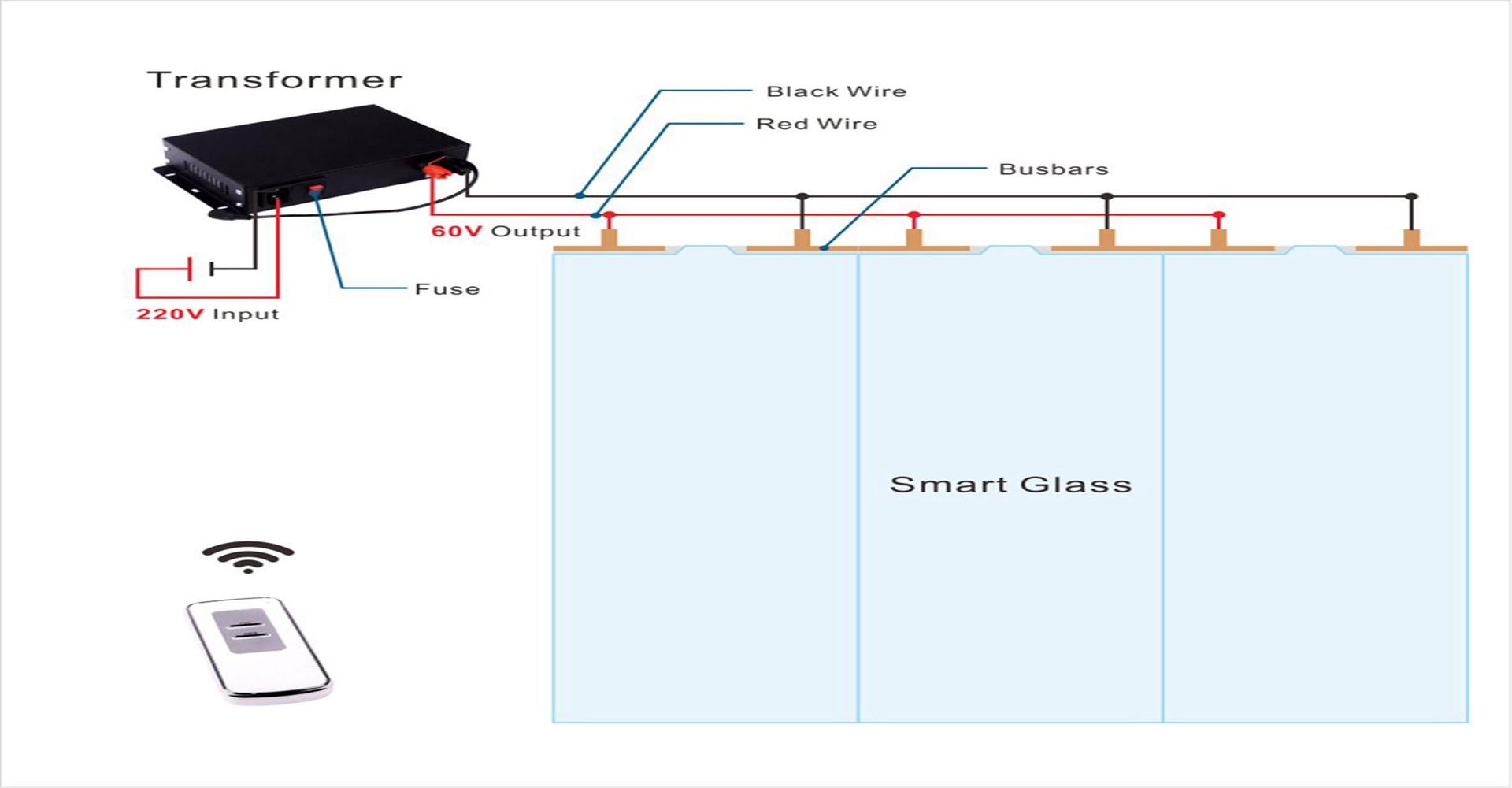

HOW TO INSTALL SMART GLASS(OR SMART FILM)?

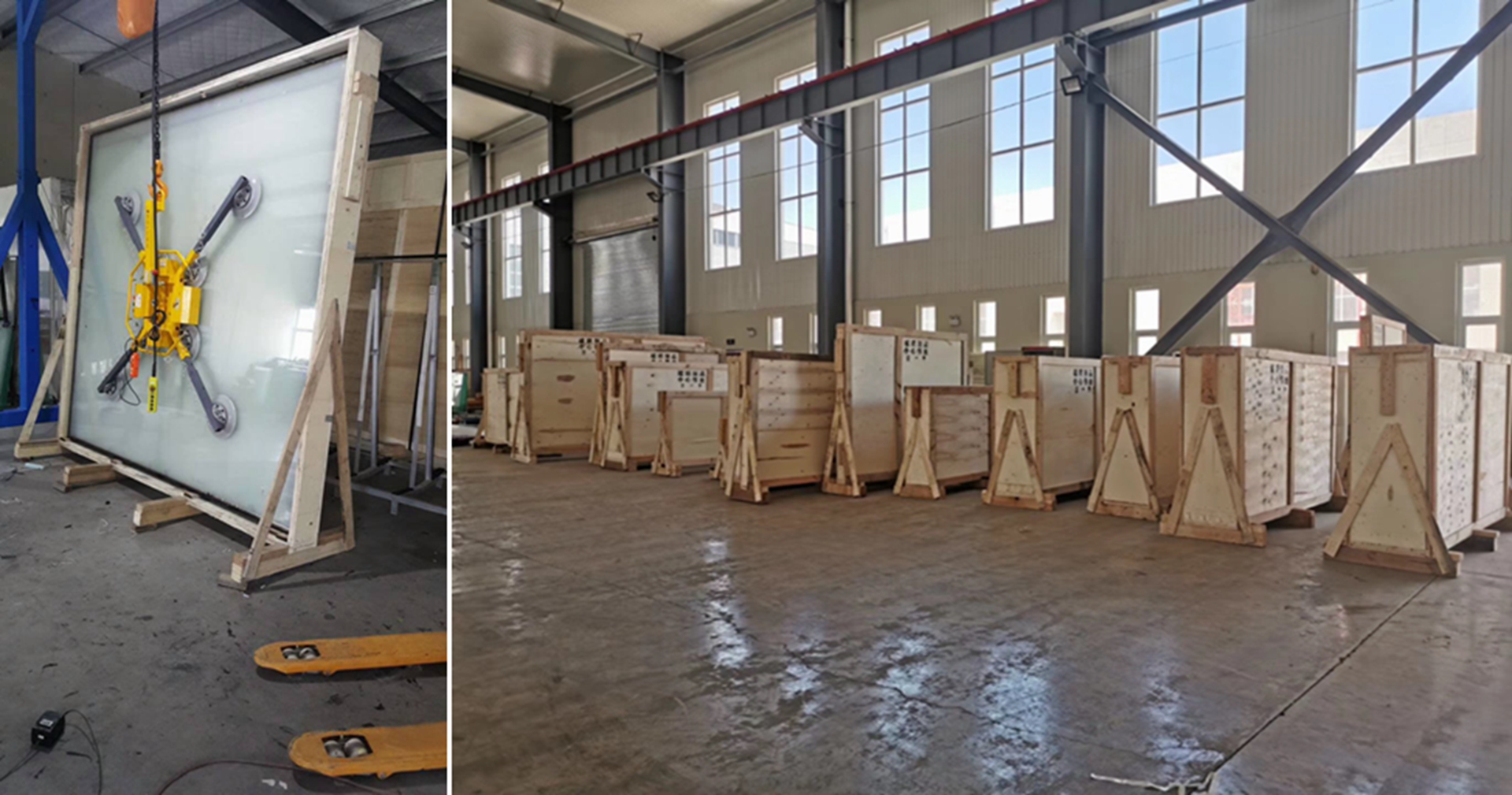

PACKAGE:

WORK SHOP:

1. Thousand-class dust-free workshop refers to the removal of particles, harmful air, bacteria and other impurities in the air within a certain space.

2. Thousand-class dust-free workshops control the indoor temperature, cleanliness, indoor pressure, airflow velocity and airflow distribution, noise vibration and lighting, and static electricity within a certain demand range, and are specially designed rooms.

Specifications

Technical Data-Smart Glass
Test Parameters		Situation	Result	Effect
Optical Parameter	Parallel Light	ON	85%±1%	High Transparency
	Parallel Light	OFF	4.4±1%	Protect Privacy
	Haze	ON	4.8±0.5%	High Transparency
	Haze	OFF	>90%	Protect Privacy
	Visual Angle	ON	140°	Wide Angle
	UV Blocking	ON	>99.8°	Environmental Protection Material
	UV Blocking	OFF	>99.8°	Environmental Protection Material
Electrical Test	Operating Voltage	ON	Clear : 48±5v Ultra clear: 65±5v	safe voltage
	Response time	ON→OFF	60ms	High Switching Speed
	Response time	OFF→ON	20ms
	Energy Consumption	ON	＜3.7W/SQM	Saving Energy
Size	Max.size	2.4x3.6m		/
Size	Thick	as per your requirements		/
Others	Working Temperature	ON-OFF	-30℃ to 60℃	/
	Storage temperature	ON-OFF	-30℃ to 75℃	/
	Working Life (indoor)	ON-OFF	＞100,000 h	Long Service Time
	On-off times	ON-OFF	＞200,000,000	Long Service Time
