Name: Switchable Smart PDLC Film
Brand: DingYe Glass Co.,Ltd.
SKU: 00105
Availability: InStock
Rating: 5 (1 reviews)

Home > Switchable Smart Glass

Description Specification Application

Description

SMART PDLC FILM

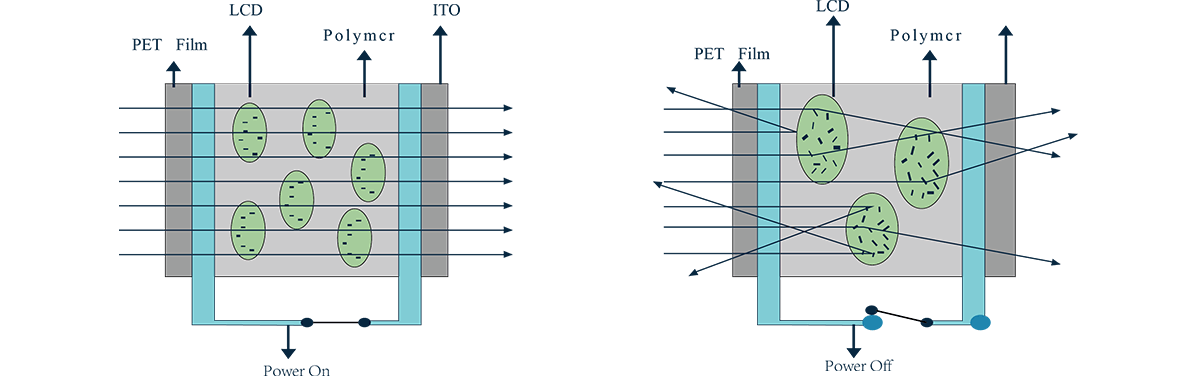

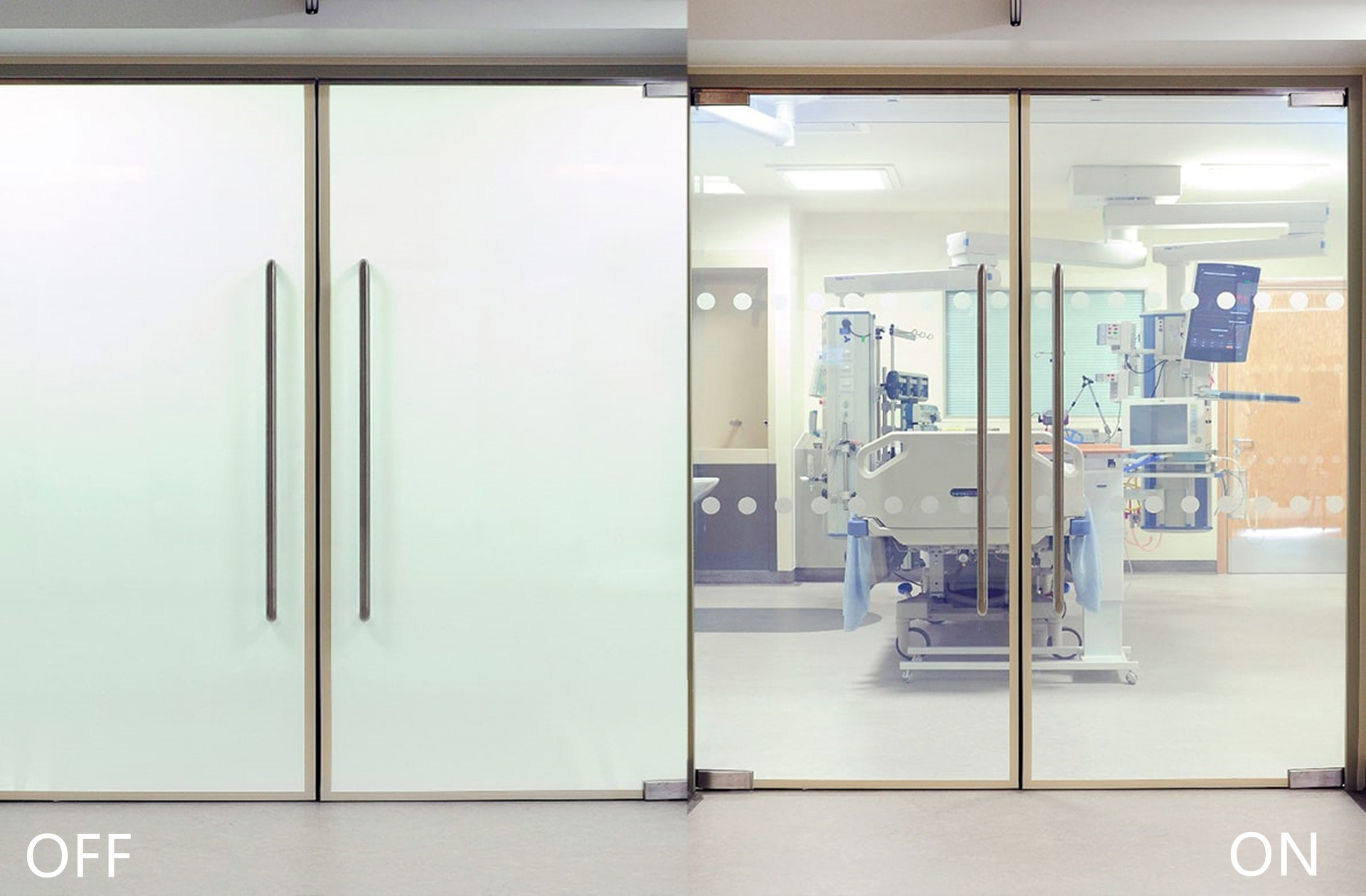

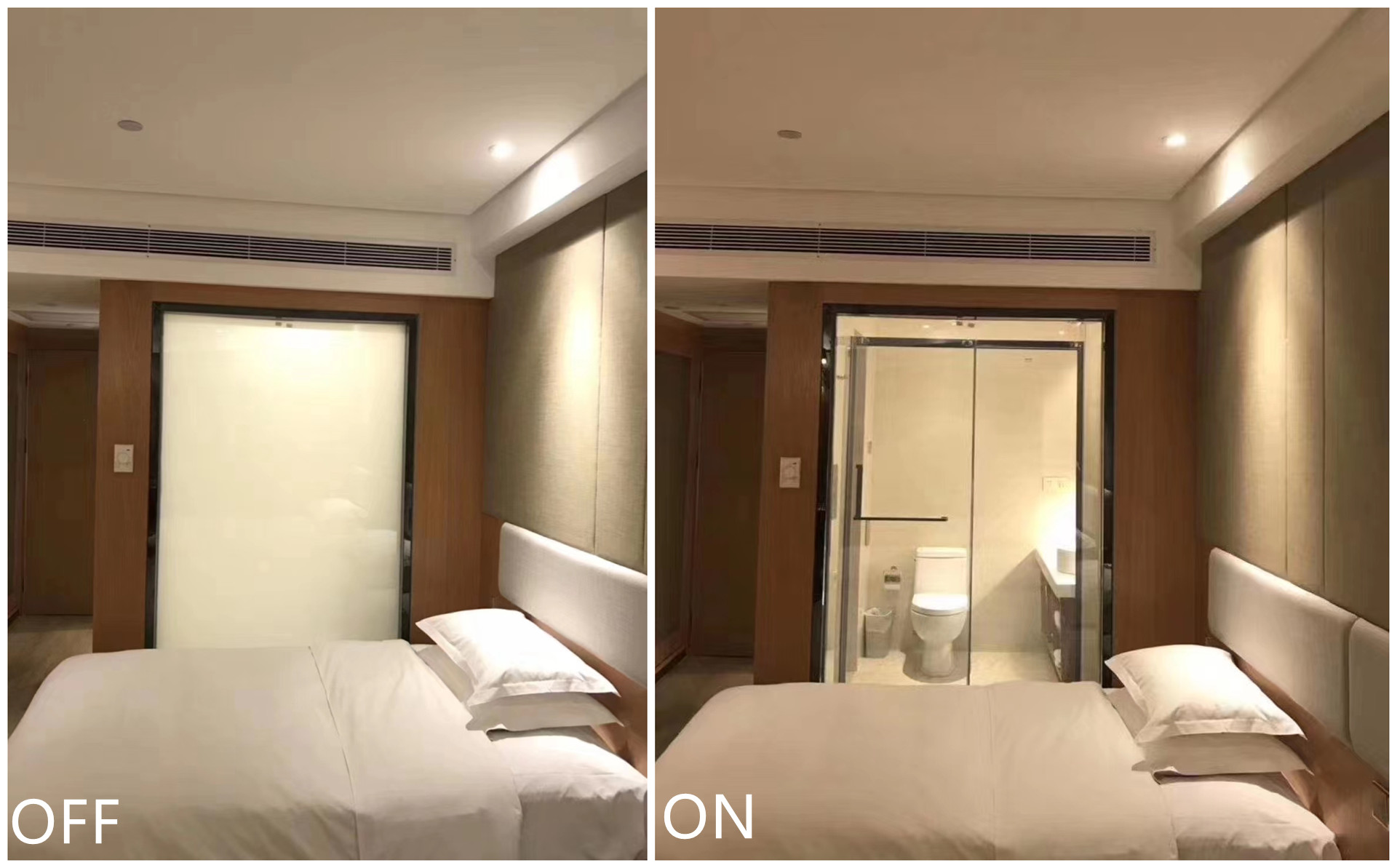

Smart PDLC Film is a new type of electronic light control products, A mixture of PDLC(polymer dispersed liquid crystals) is sandwiched between the two ITO conductive membranes, which are reticulated and filled with liquid crystal droplets made up of liquid crystals in the voids. The liquid crystal molecules in each liquid crystal droplet are arranged consistently to form a single-axis liquid crystal body, but the optical axes of different liquid crystal droplets are arranged in disarray. ITO Conductive film is a flake surface coated with ITO conductive layer of polyester film, has a conductive effect. when the liquid crystal molecules are energized, the liquid crystal molecules tend to be in the same direction, and the light can pass through, showing a transparent state, being in a disordered state when the power is off, and being frosted white; we can offer two types pdlc film, non-adhesive smart pdlc film and self-adhesive smart pdlc film.

Non-adhesive PDLC Film

Non-adhesive PDLC film is a new type of electronic light control product, it is designed to sandwich laminating between glass in order to make smart glass product, it’s EVA film lamination process. which is the core material for making switchable glass, through the action of the electric field, it is possible to achieve a rapid transition from on to off, from off to on.

Non-adhesive PDLC film without self-adhesive layer, normally used to laminated smart glass, based on this propety,the target customer of the non-adhesive smart film is the decorative glass manufacture and trader, if you have glass factory, and want to produce the laminated smart glass by yourself (glass+EVA+PDLC film+EVA+glass), pls choose this type, we can provide technician guidance, .hardware configuration,technical traning,accessories,etc. we have long term cooperation with many glass factory.

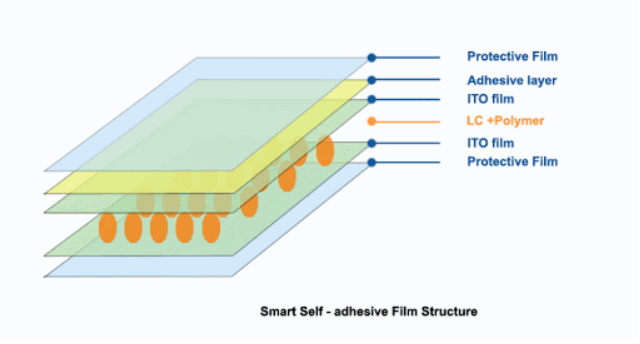

Self-adhesive PDLC Film

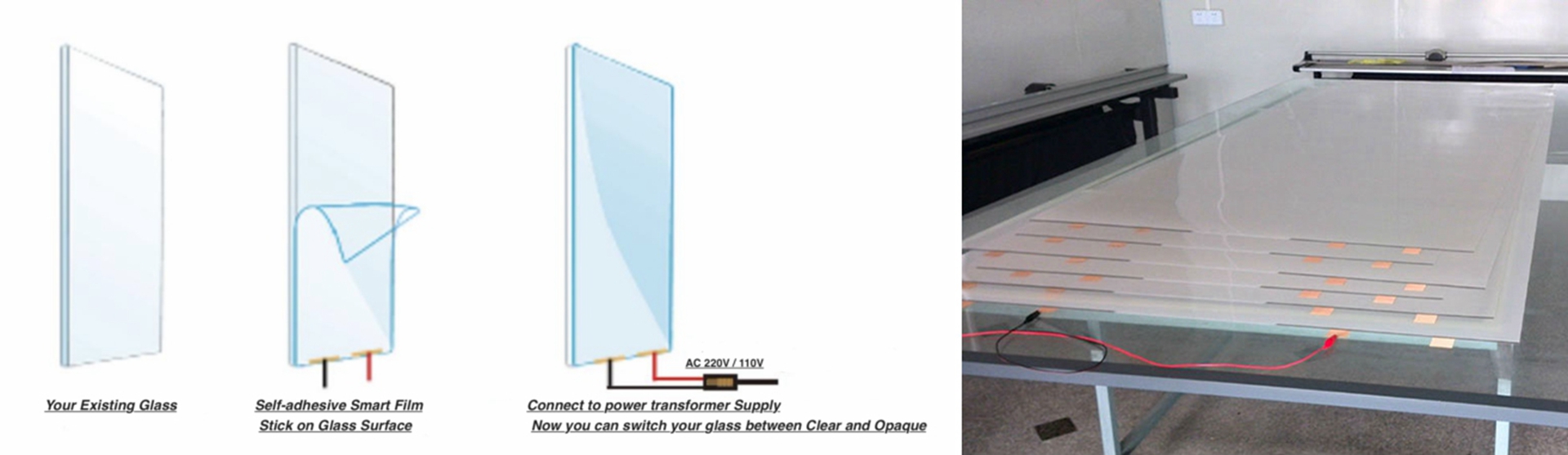

The self-adhesive PDLC film is an improved product from the original smart film, with a self-adhesive cling layer on the rear side, you can peel and stick to existing glass directly by yo. it is a very practical invention. which provides a simple and cost effective alternative way to retrofit your existing glass into switchable smart glass.easily to install on existing glass surface, no need to change glass,easy installation.

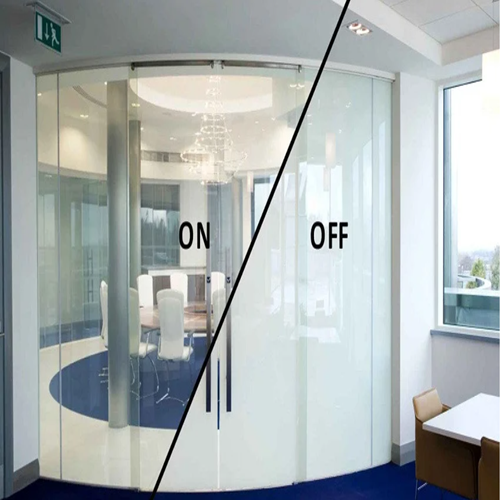

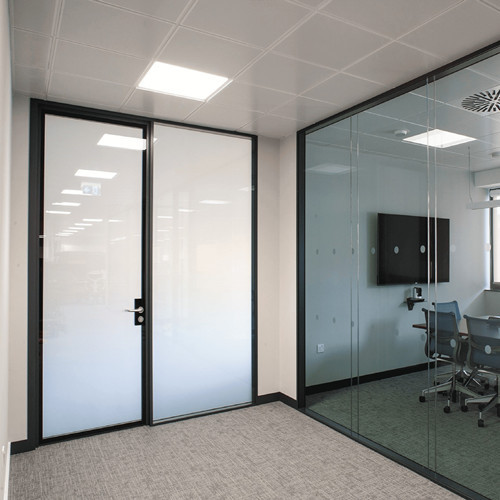

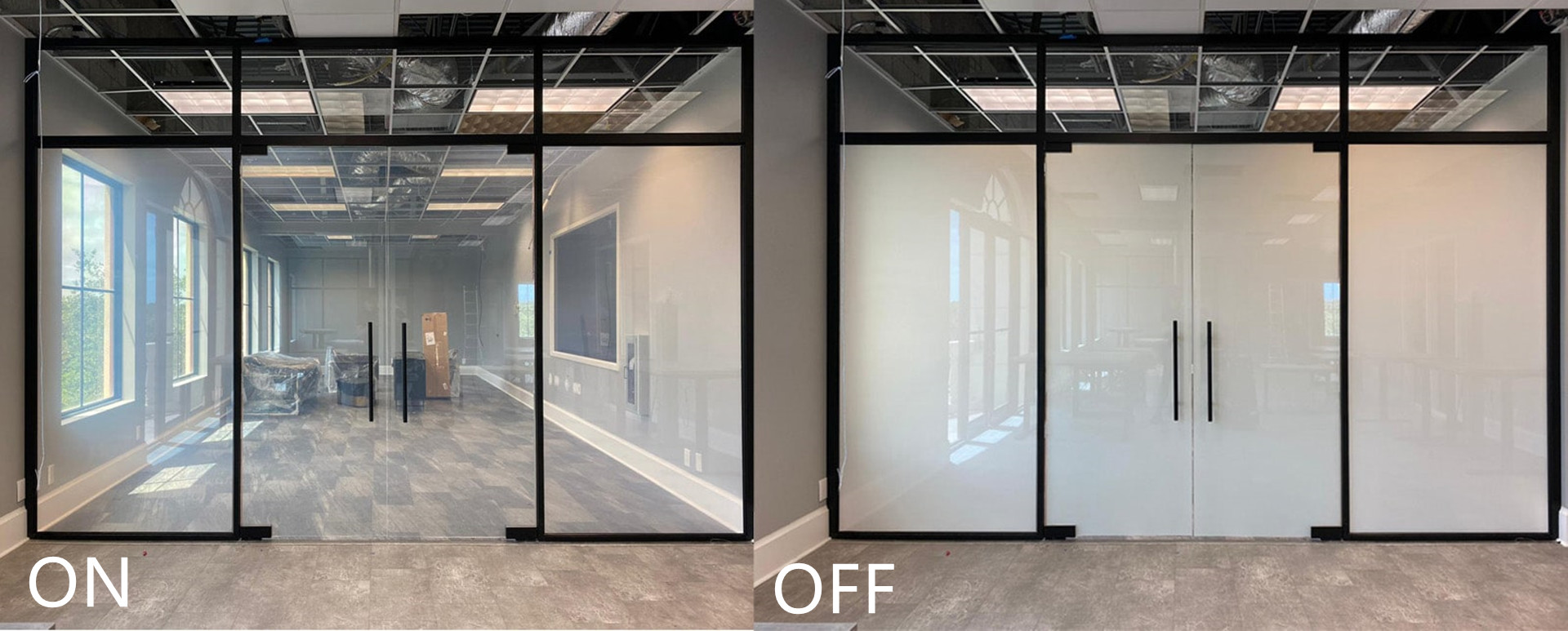

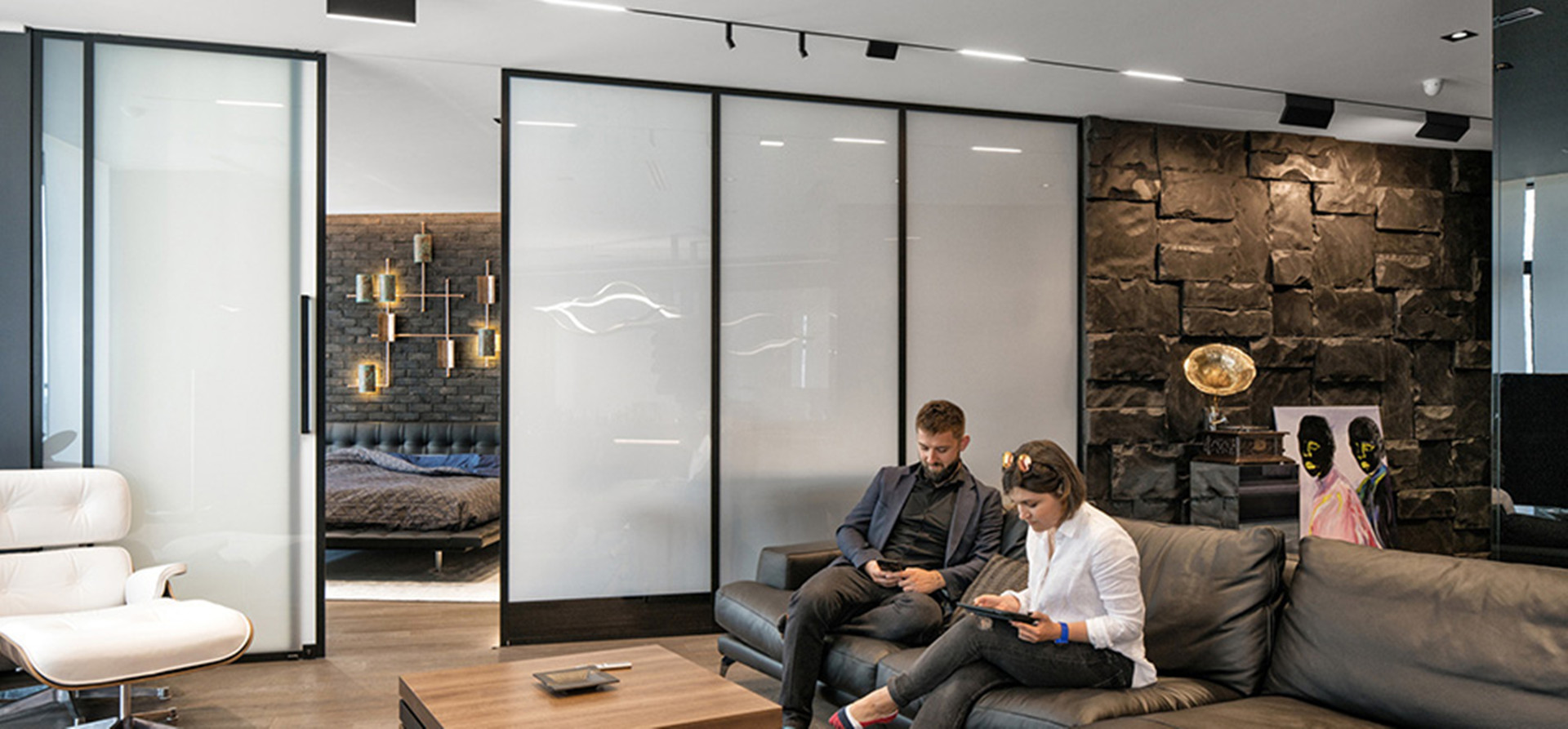

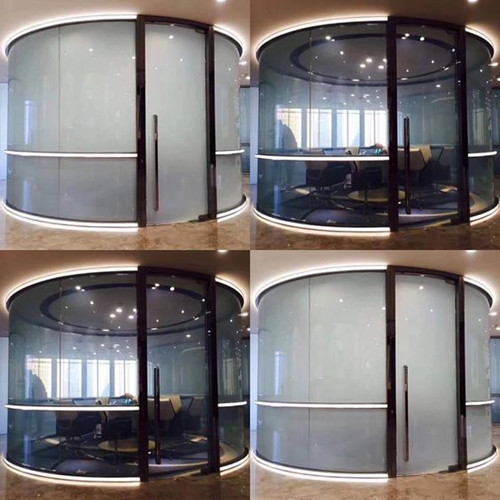

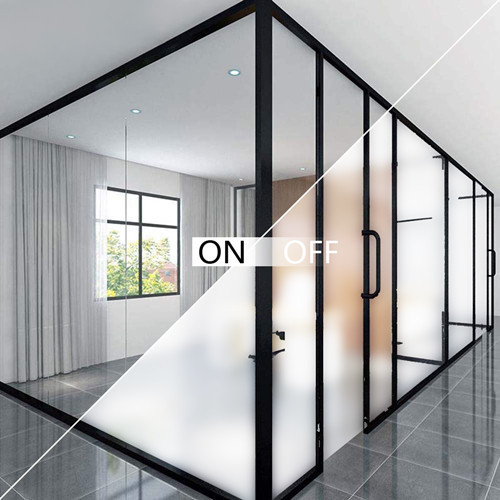

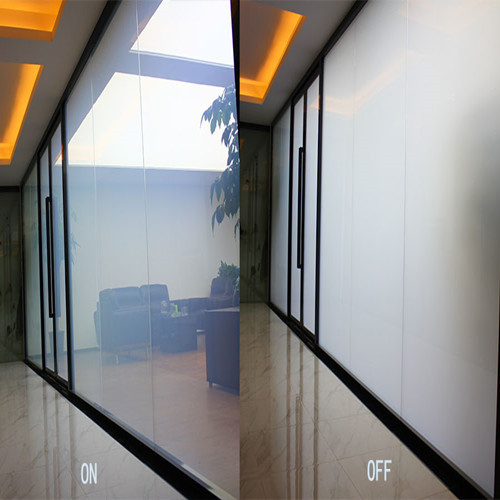

Smart Film transforms ordinary glass windows, walls and doors into smart glass, making it the perfect retrofit option and can be projected . It has the characteristics of convenient transportation, convenient installation, easy maintenance and replacement.

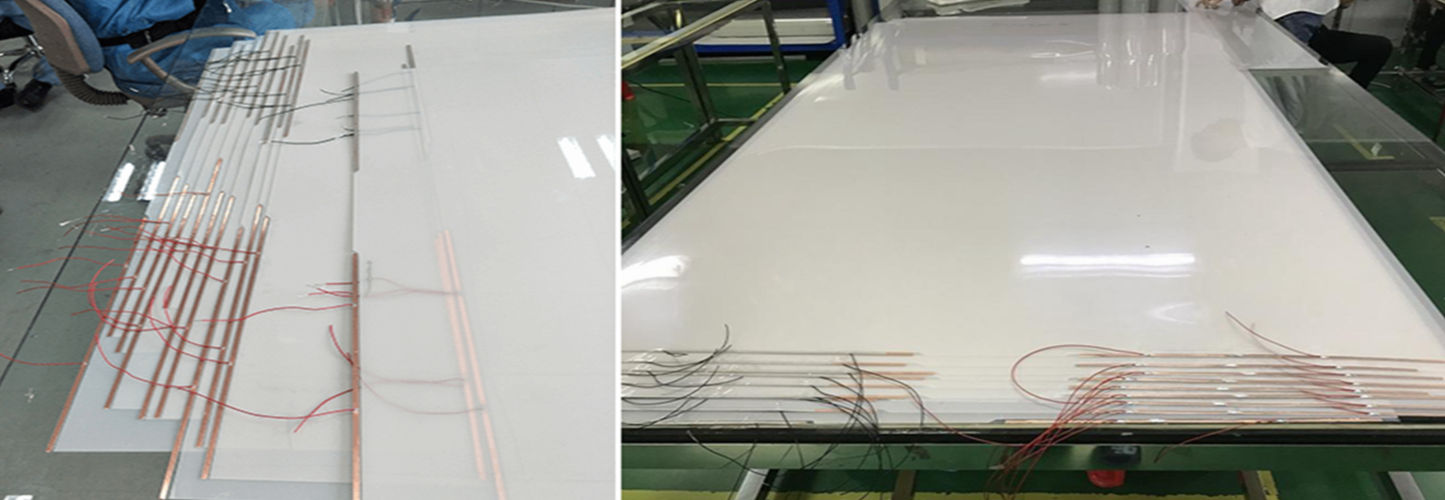

PRODUCTS SHOW:

The products we offered is completed products, including wires, so you can use it directly.

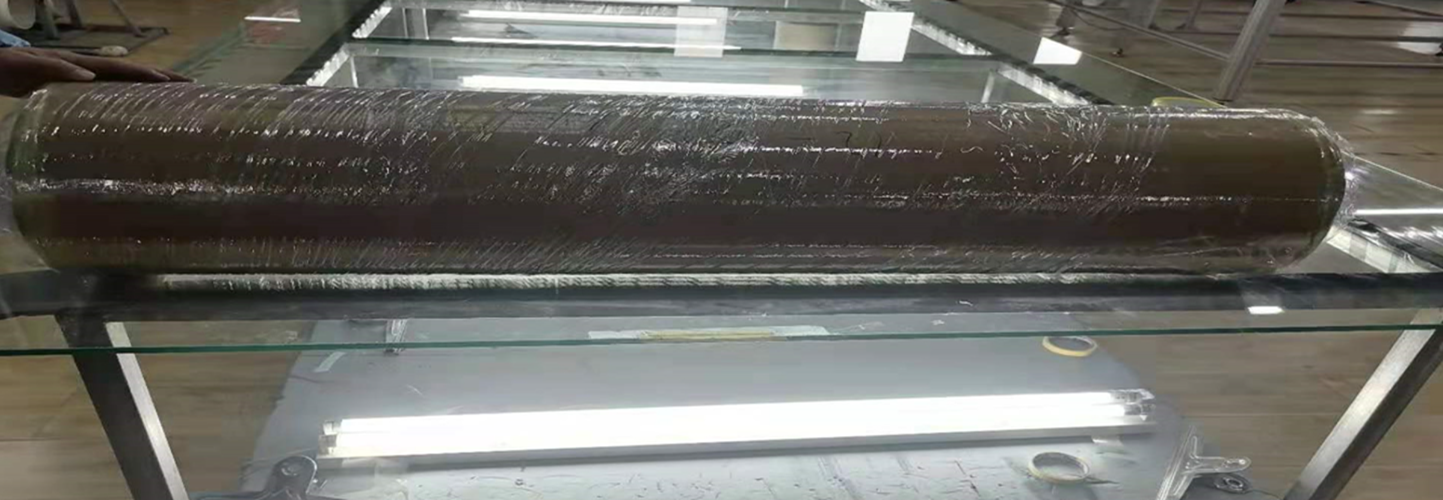

OUR PACKAGE:

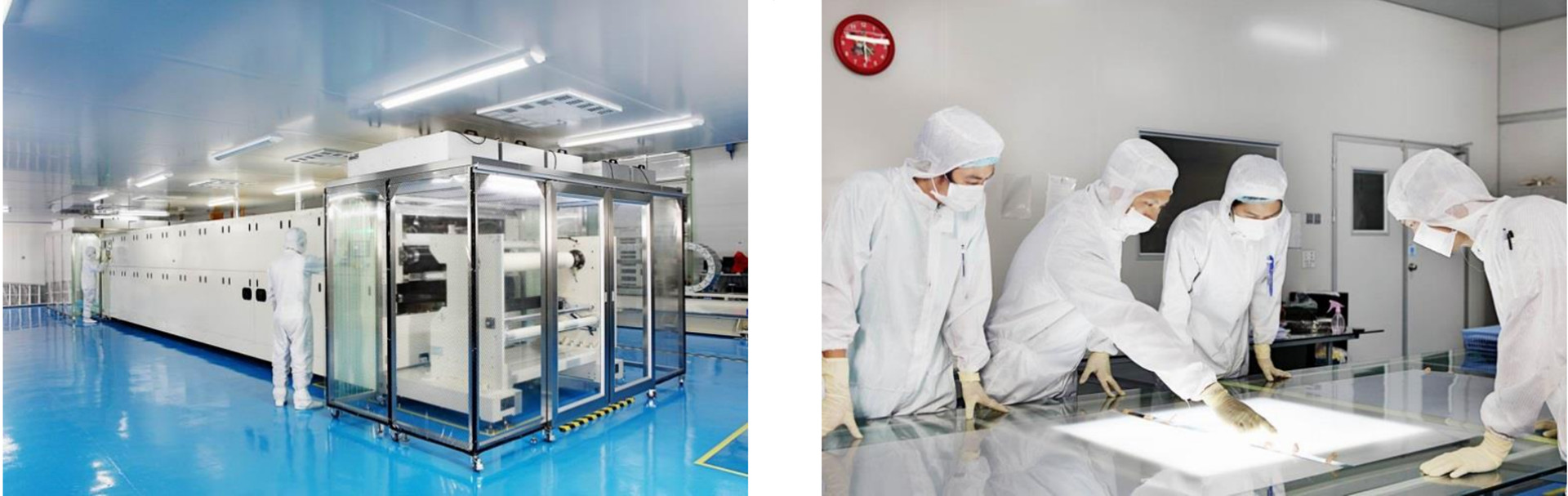

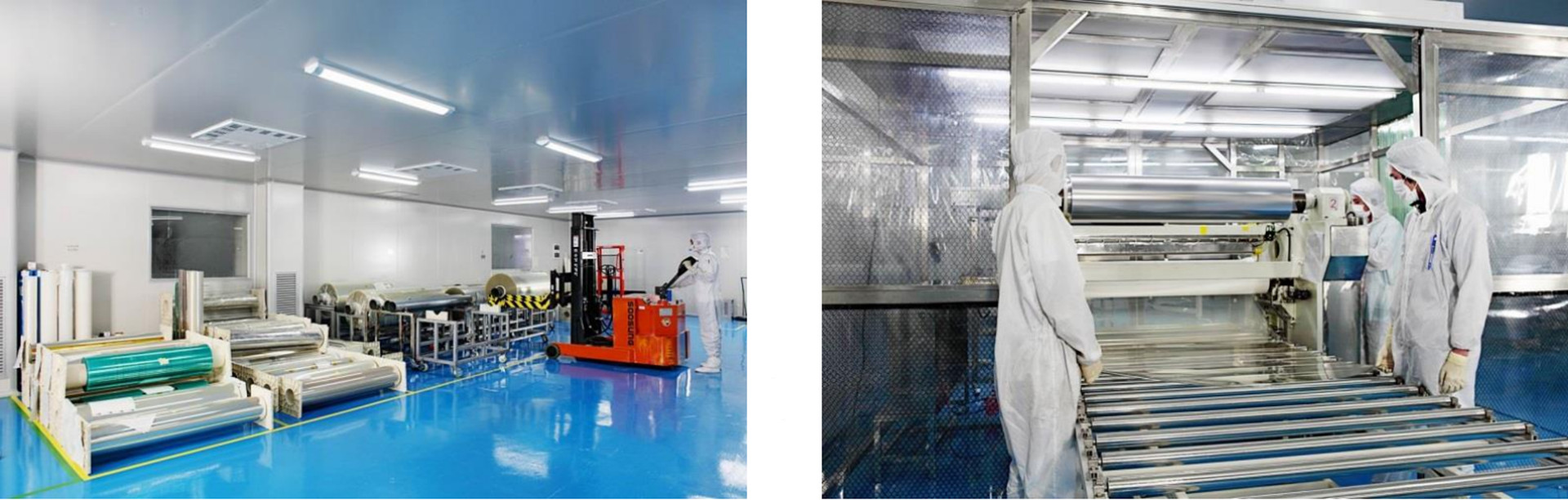

WORK SHOP:

 Thousand-class dust-free workshop refers to the removal of particles, harmful air, bacteria and other impurities in the air within a certain space.

 Thousand-class dust-free workshops control the indoor temperature, cleanliness, indoor pressure, airflow velocity and airflow distribution, noise vibration and lighting, and static electricity within a certain demand range, and are specially designed rooms.

Specification

Technical Specifications Of Smart PDLC Film
Product Description		110V High Transparent Switchable PDLC Film	65V High Transparent Switchable PDLC Film	65V Standard Switchable PDLC Film
Operation Model	Power On	Transparent	Transparent	Transparent
Operation Model	Power Off	Opaque	Opaque	Opaque
Specification	Available Colour	Milky White	Milky White	Milky White	Light Grey	Dark Grey
	Power On	82%	81%	79%	57%	32%
	Power Off	4%	4%	4%	4%	4%
	Haze	2-3%	3-4%	4-5%	4-5%	4-5%
	View Angle	About 165 Degree	About 165 Degree	About 145Degree
	Maximum Size	Self-adhesive Film Roll Size:1x30m,1.2x30m,1.5x30m,1.8x30m(standard size) Non-adhesive Film Roll Size:1.5x30m,1.2x30m,1x30m,1.8x30m,1.9x30m(standard size)
	Thickness	0.36mm
	Switch Time	Less than 1 second(Off>On: about 200 milliseconds; On>Off: about 600 milliseconds)
	Life Time	More than 100000h(20years)
Electrial	Operating Voltage	AC 110V+5V-20V	AC65V±5V
	Power Consumption	About 8W/sqm	About 3.7W/sqm	About 3.7W/sqm
	Frenquency Rate	50-60HZ
	Operating Temperature	-20℃-60℃
Green Material Function	UV Block	Self-adhesive type:On/Off ,Model>99%;Non-adhesive type:On Model>45%,Off Mode>99%
	Infrared Block	On Model>17%;Off Model>99%
	Dimmer Function	YES
