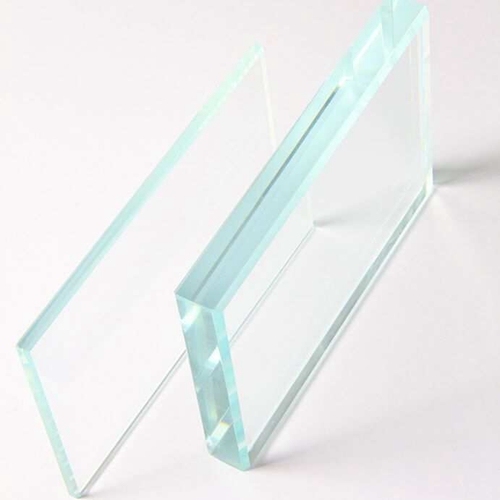

ULTRA CLEAR GLASS(LOW IRON GLASS)

The Ultra Clear Float Glass is a type of float glass, which has very low iron content and hence is also called low iron glass,its light transmittance is higher than clear glass with same thickness.

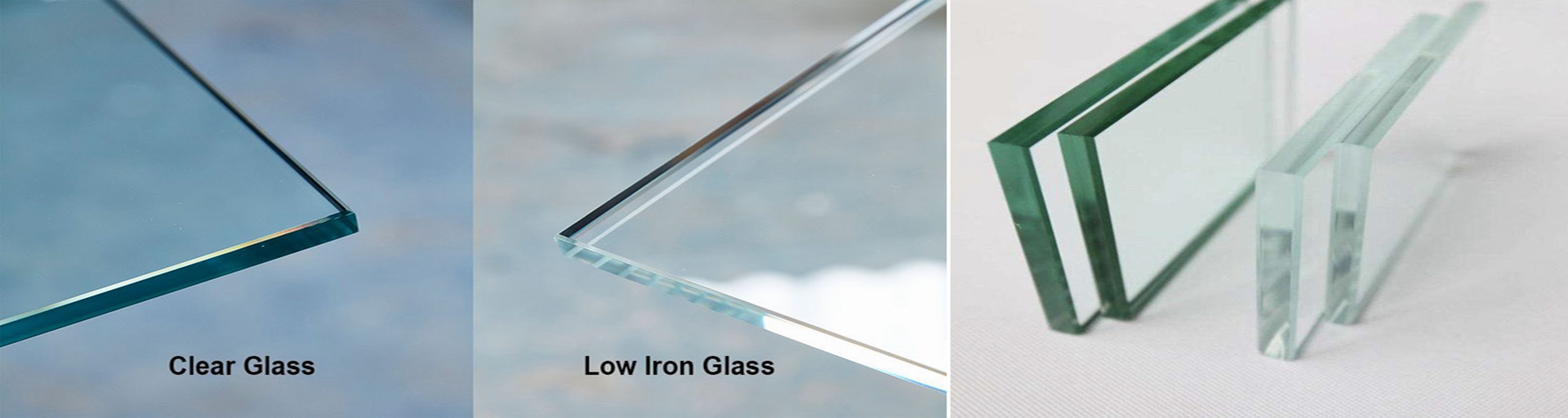

Low Iron Glass is a unique ultra crystal clear glass which displays of the faint greenish tint apparent in most standard ‘clear’ glass. This product is characterized by its crystal clear appearance and high light transmission (≥91% of visible light), and is significantly less green in appearance. Low Iron Glass enhances the appearance of natural materials,the contrast in terms of clarity is even more apparent.

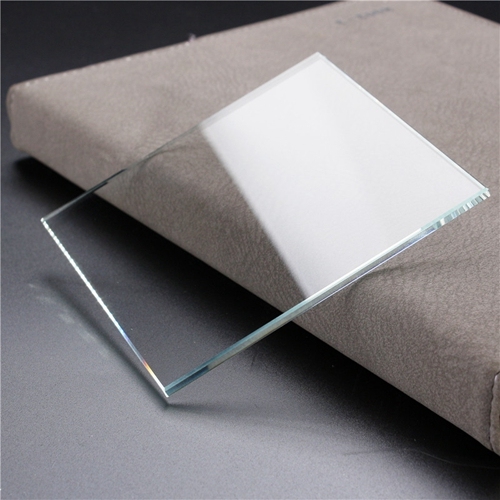

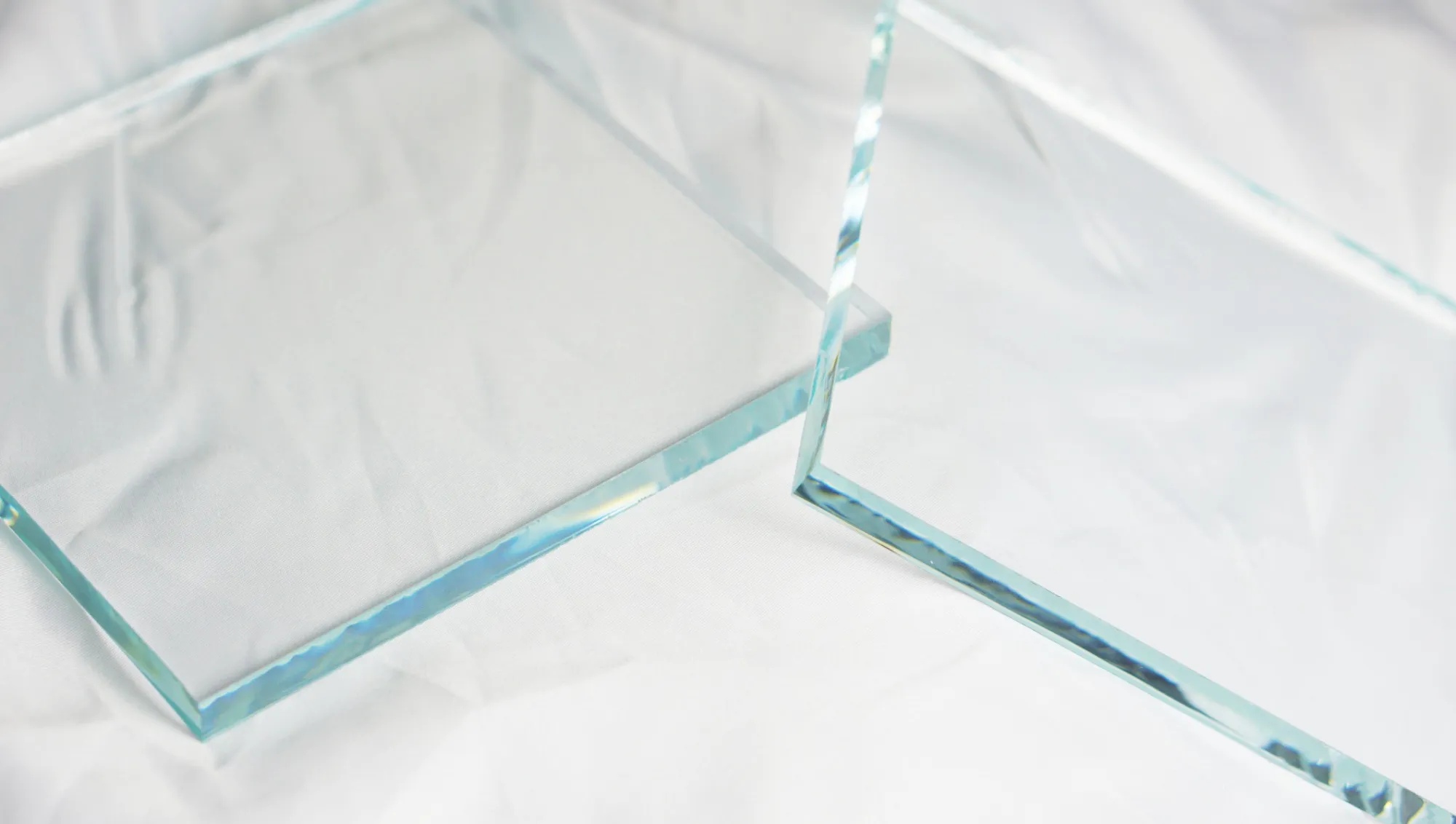

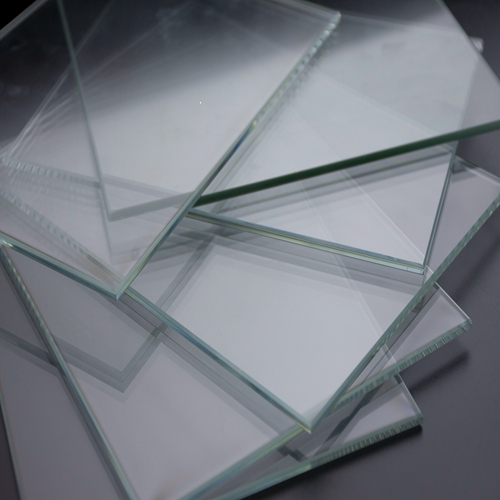

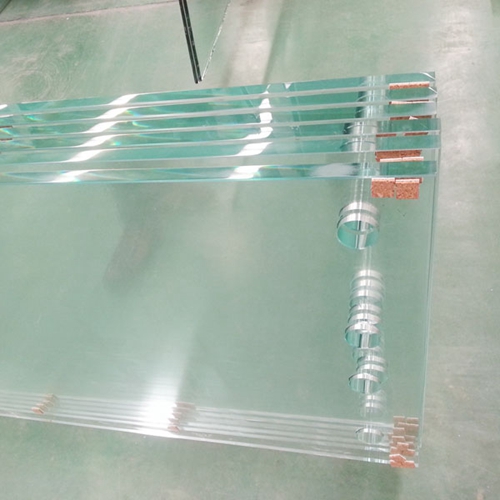

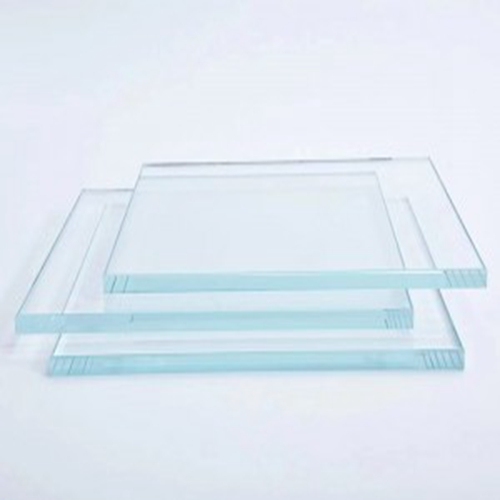

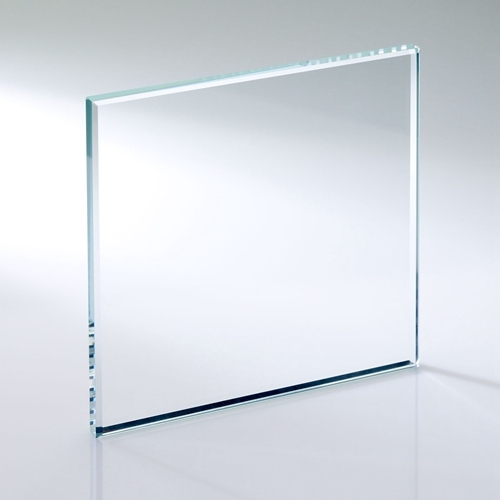

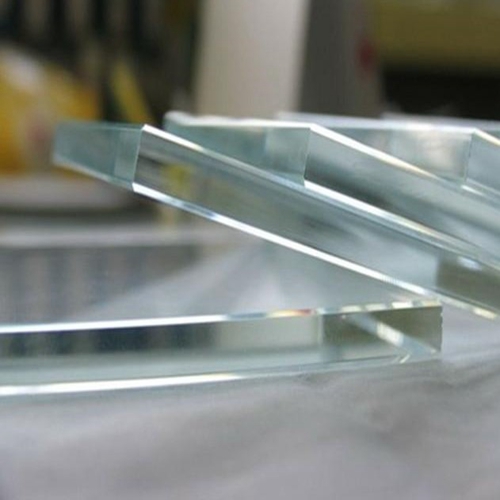

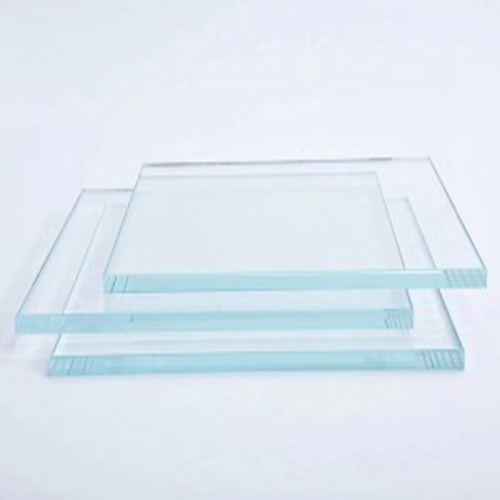

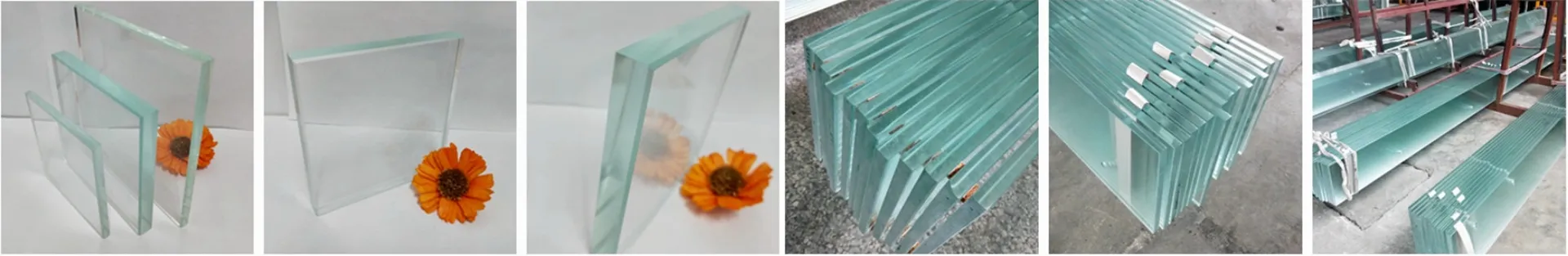

DETAIL PRODUCT PICTURES:

OPTIONAL PARAMETERS:

Thick	Visible Light Transmittance	Visible Light Reflectivity	Solar Radiant Coefficient			Shading Coefficient					U Value	Sound Insulation	UV Penetration
Thick	Visible Light Transmittance	Visible Light Reflectivity	Direct Penetration	Reflectivity	Absorb	Total Penetration	Short Wave	Long Wave	Total	(W/㎡K)	Rm(dB)	Rw(dB)	Architecture Series
3mm	91.6%	8%	90%	8%	1%	91%	1.05	0.01	1.05	5.8	26	30	76%
3.2mm	91.5%	8%	90%	8%	2%	91%	1.03	0.01	1.05	5.8	26	30	75%
4mm	91.4%	8%	90%	8%	2%	91%	1.03	0.01	1.05	5.8	27	30	73%
5mm	91.3%	8%	90%	8%	2%	90%	1.03	0.01	1.03	5.8	29	32	71%
6mm	91.1%	8%	89%	8%	3%	90%	1.02	0.01	1.03	5.7	29	32	70%
8mm	91%	8%	88%	8%	4%	89%	1.01	0.01	1.02	5.7	31	34	68%
10mm	90.6%	8%	88%	8%	4%	89%	1.01	0.02	1.02	5.6	33	36	66%
12mm	90.4%	8%	87%	8%	5%	88%	1.00	0.02	1.01	5.5	34	37	64%
15mm	90.1%	8%	86%	8%	6%	87%	0.99	0.02	1.00	5.5	35	38	61%
19mm	89.7%	8%	84%	8%	7%	86%	0.97	0.02	0.99	5.5	37	40	59%
22mm	89.6%	8%	82%	8%	9%	85%	0.95	0.02	0.97	5.5	38	43	58%
25mm	89%	8%	81%	8%	9%	84%	0.93	0.02	0.95	5.5	39	45	56%

PRODUCT FEATURES:

High safety: low spontaneous breakages, until now there is no spontaneous breakages.

High transmittance: visible light transmittance near 92%, 6% higher than clear float glass.excellent clarity ensures true colors are seen and optimum vision quality is achieved when looking through the glass.
